Traynor YCV40 Custom Valve 40 (FOR PARTS ONLY) on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
ATTN: *Amp is NOT FUNCTIONAL SOLD AS-IS No other info available

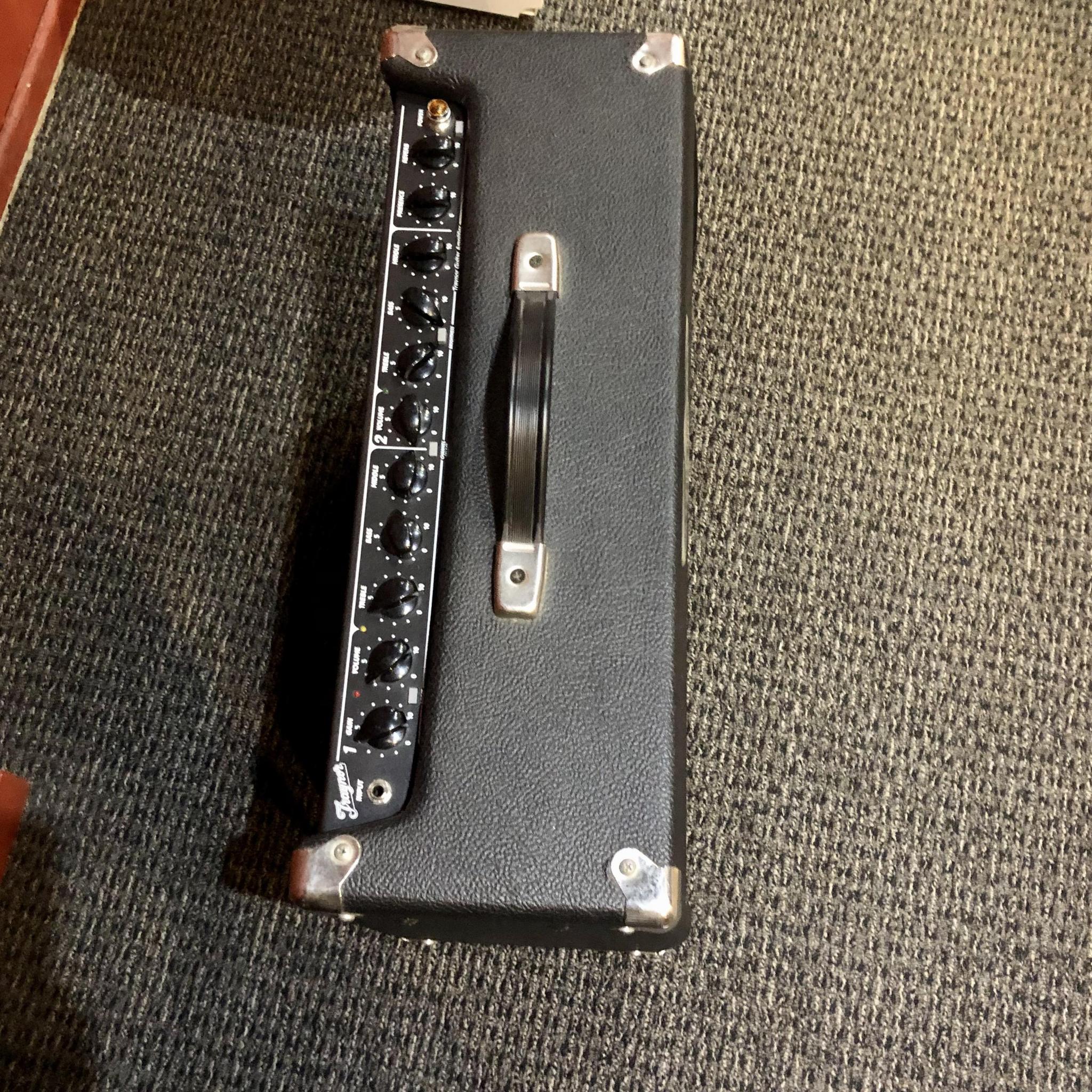

*Cabinet is in beautiful condition See pics
Overview
The first guitar amp that brought the Traynor name back into the world of modern tube amps was the YCV40, and it continues on today. Real tube overdrive is provided by three 12AX7WA dual triode preamp tubes while real tube power is provided by two 5881WXT beam power tubes. The internal gadgetry in this channel switching amp provides good flexibility, but makes it very easy to get a great tone. The combination of the tube power and the Celestion™ speaker is magical. The three basic tones (clean, crunch and overdrive) are easily defined. With great tone at low levels, and shine and punch at full tilt, the Custom Valve 40 has received rave reviews for over 10 years, including Guitar Player™ magazine’s Editor’s Pick Award in 2001.
Although signal-to-noise is not normally a specification that is discussed where guitar amplifiers are concerned, the ultra-quiet Custom Valve 40 makes it an issue. Experienced professional users will appreciate the auto-matching tube circuit that maintains bias balance as tubes age ensuring hum free performance. Listen carefully. Although the YCV40 has a tremendous amount of gain it remains virtually hum free.
The rear mounted control panel is easy to access, yet recessed for protection.
Key Features
- Auto-matching tube circuit maintains bias balance as tubes age ensuring hum free performance throughout tube life
- DC filaments on preamp tubes eliminate hum
- Fully regulated power supply with tube rectifier emulation
- Long Accutronics spring reverb
- Classic Celestion™ speaker
- All plywood enclosure
- Heavy gauge perforated grille with cloth cover
- Custom design “Chicken Beak” knobs
-
Specifications
Cabinet Impedance (Ohms) 8 Power @ min. impedance (Watts) 40 Minimum Impedance (Ohms) 4 Speaker Configuration – LF (Size Power) 12 inch 40 Watts Inputs 2 Channel 1 – Inputs 1 4 inch phone Channel 1 – Controls Gain, Volume, Treble, Bass, Middle Channel 1 – Switches Boost Channel 2 – Inputs Shares ch 1 input Channel 2 – Controls Volume, Treble, Bass, Middle Channel 2 – Switches Channel Select, Brightness Channel Switching Yes Main Tone Controls Presence Line Out (type configuration) 1 4 inch TRS Rear (Effects Send) Effects Volume Yes Effects Loop Location Yes Rear Effects Footswitch Function Yes Channel Select, Boost Internal Reverb Effects Spring Reverb LED Indicators Channel Select, Boost, Power, Standby External speaker output location 1 4 inch Rear Other Features Standby Switch – Activates standby mode to keep the tubes warm while the amp is not in use.
Auto Tube-matching Circuit
Preamp Tube – 3x 12AX7WA Dual Triodes (Russia)
Power Amp Tube – 2x 6L6GB Beam Power Tubes (Russia)
DC filaments on preamp tubes eliminate hum
Fully regulated power supply with tube rectifier emulation
Perforated Steel GrilleDimensions (DWH, inches) 9.5 x 23 x 18 Dimensions (DWH, cm) 24 x 58 x 46 Weight (lbs kg) 45 20.4 Specifications subject to change without notice Title Default Title
